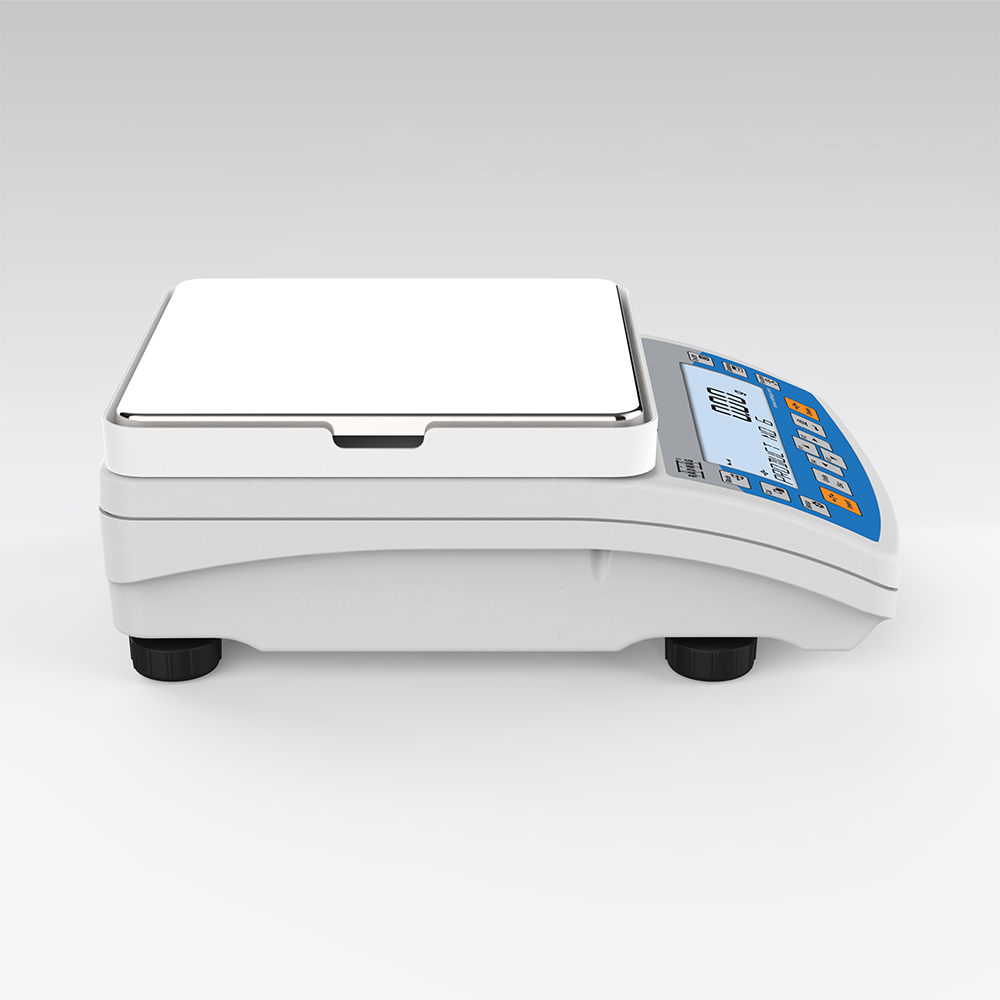

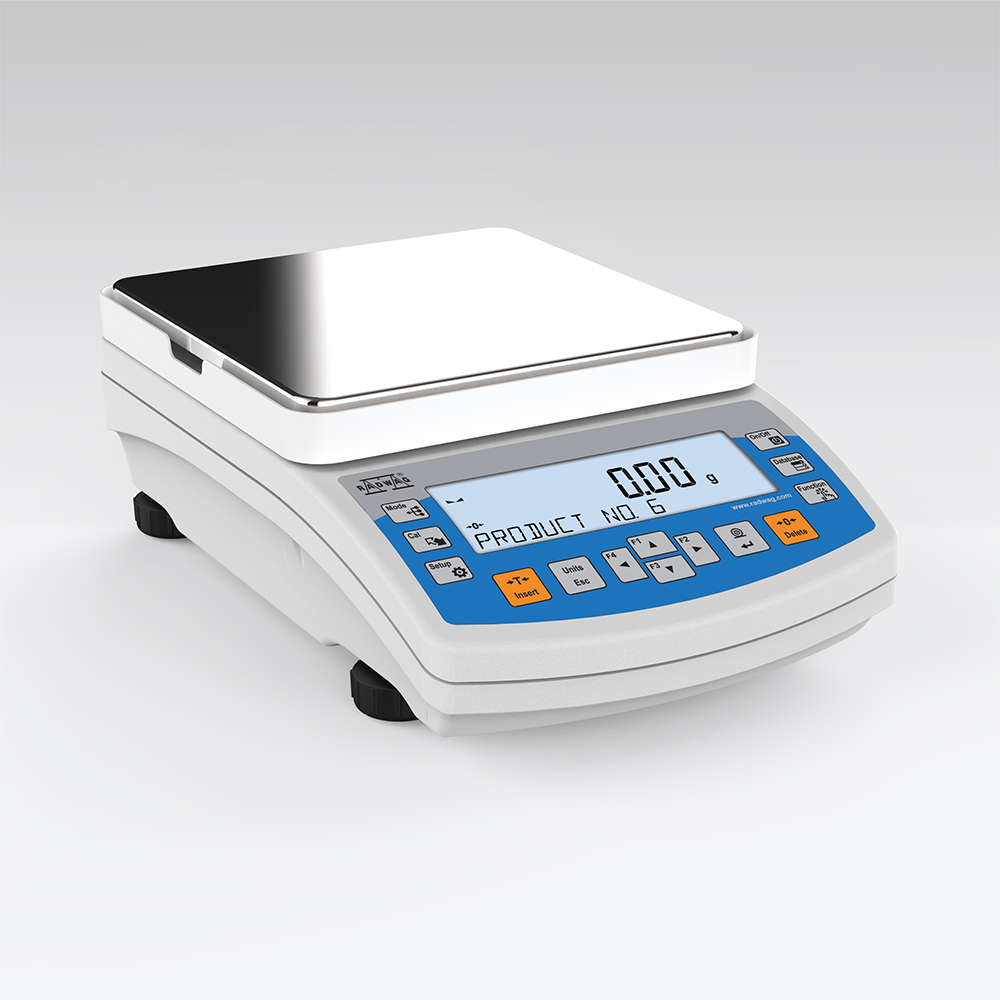

RADWAG PS 3500.R1.M — Precision Balance 3500 g / 0.01 g

Technical Data

Full Specifications

Metrology

Maximum Capacity: 3500 g
Readability (d): 0.01 g
Minimum Load: 500 mg
Tare Range: -3500 g
Repeatability (Max): 0.008 g
Repeatability (5% Max): 0.005 g
Linearity: ±0.02 g
Stabilization Time: 1.5 s
Adjustment: External
Leveling System: Manual

Physical & Environment

Weighing Pan: 195 × 195 mm (stainless)
Display: 5.3" LCD backlit
Housing: Plastic casing
Protection Class: IP 43
Operating Temperature: +10 to +40 °C
Relative Humidity: 40% – 80%
Power Consumption: 4 W
Packaging (W×D×H): 475 × 380 × 345 mm
Net Weight: 3.6 kg
Gross Weight: 5.1 kg

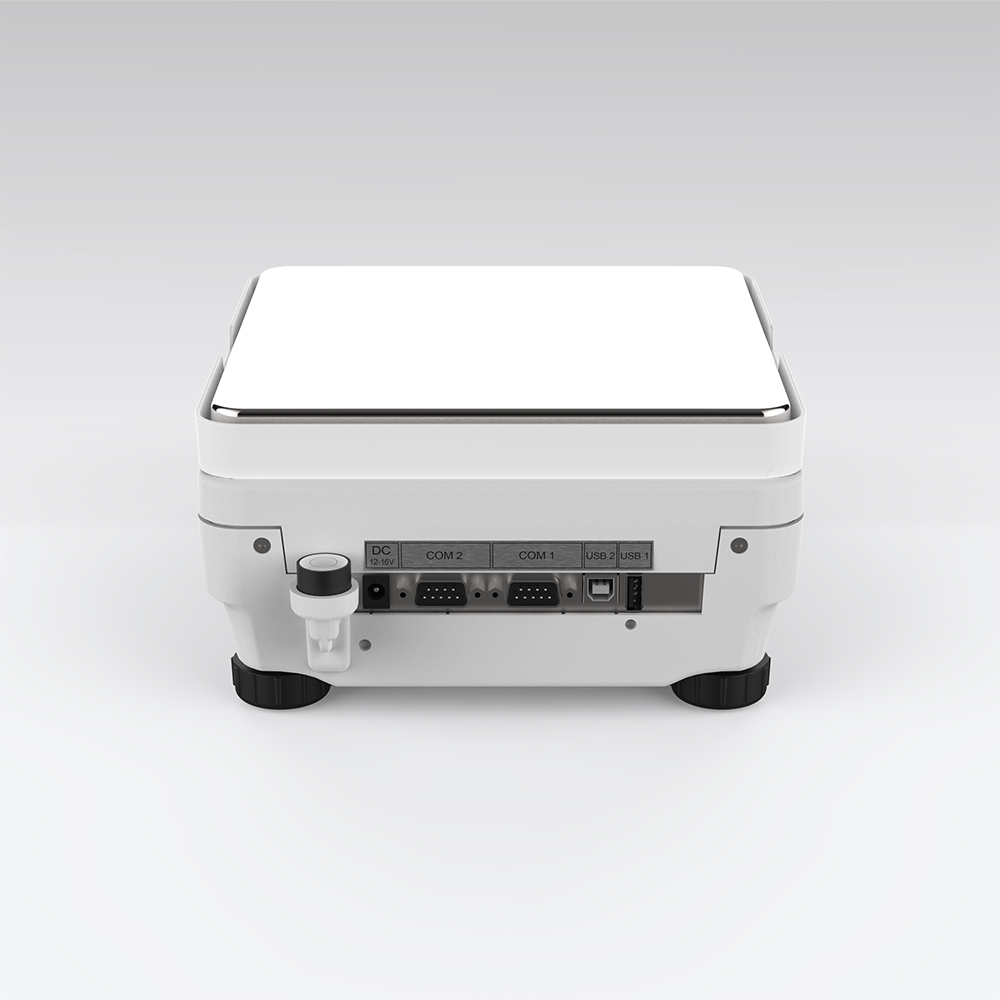

Communication & Data

RS232: 2
USB Type A: 1
USB Type B: 1
Wi-Fi®: Optional
ALIBI Memory: 100,000 weighings
Databases: 5 (users, products, weighments, tares, ALIBI)
USB Pen Drive: DB import/export
THBR 2.0 Compatible: Yes

Why PS 3500.R1.M

✓Large 195 × 195 mm pan — comfortably accepts beakers, flasks, trays up to A5
✓3.5 kg capacity at 10 mg — rare precision-to-range ratio in this class
✓1.5-second stabilization — fastest of the R1 family
✓"M" verification suffix — legal-for-trade compliant out of the box
✓Under-pan weighing capable via hook accessory
✓5 integrated databases — operators, products, weighings, tares, ALIBI

Built-In Applications

Weighing Functions

D

Dosing

Target-weight dosing with tolerance bands.

#

Parts Counting

Quantity from unit mass with auto correction.

%

Percent Weighing

Comparison against a reference mass.

Σ

Totalizing

Cumulative mass across components.

✓

Checkweighing

Pass/fail threshold verification.

σ

Statistics

Max, min, mean, SD, variance.

↑

Peak Hold

Dynamic measurement peak capture.

🐾

Animal Weighing

Motion-filtered live-sample mass.

ρ

Density

Solid & liquid density determination.

GLP

GLP Procedures

Documented audit-ready records.

⚙

Autotest

Self-diagnostic repeatability check.

⇩

Under-Pan Weighing

Hook-based hanging measurement.

Ideal For

Where It Shines

The PS 3500.R1.M is the answer when you need to weigh bigger samples without giving up 10 mg precision — and when legal-for-trade (verified) status matters.

✓Production & bulk raw material QC — incoming batch verification, recipe compliance
✓Food industry — portioning, ingredient measurement, packaging control
✓Commercial / retail — legal-for-trade verified selling by weight
✓Chemical & paint industry — formulation, inventory, stock weighing
✓University & teaching labs — bulk sample preparation, physics & chemistry
